Name: JL Audio VX1000/5i 5-channel car amplifier with digital signal processing — 75 watts RMS x 4 at 4 ohms + 600 watts RMS x 1 at 2 ohms - Audio soundwave solutions
Price: 1300.00 USD
Availability: InStock

JL Audio VX1000/5i 5-channel car amplifier with digital signal processing — 75 watts RMS x 4 at 4 ohms + 600 watts RMS x 1 at 2 ohms

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist

Have a Question? Ask a Specialist

+1 864-938-7537 Start Live Chat

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

Amplifier plus DSP

We’ve heard a lot of good things about JL Audio’s VXi Series amplifiers, which combine JL Audio’s latest amplifier technology with powerful signal processing. They also improved the amp’s Class D performance by shortening the signal path through the amp, placing the output capacitor banks nearer the outputs, and using up-to-date DirectFET® MOSFET output devices, resulting in higher efficiency, reliability, and audio quality.

Power and tune your whole system

The VX1000/5i 5-channel amplifier puts out 4 channels of 75 watts RMS, plus up to 600 watts RMS for a sub. It also features 7 channels of digital signal processing, giving you lots of flexibility in setting up a system. For instance, you can power a system with 2-way component speakers (tweeter and midrange woofer) up front and a sub in the rear, while providing a processed signal for a separate amplifier for rear speakers. You could also use this amplifier in bridged, 3-channel mode to power a couple high-performance speakers with 200 watts RMS each and a sub with 600 watts.

Digital accuracy

The 24-bit 96 kHz processing for each channel includes signal routing and mixing, 10-band parametric EQ, time-alignment, high- and low-pass filters, and output level control with 0.1 dB precision. In addition to tuning the audio signal, the processor provides a master clock signal for the Class D amplification, increasing audio accuracy.

Remote control only

You make all your settings and adjustments from your compatible device running JL Audio’s TüN™ software.

PC and Mac OS: TüN 3.0 — requires a USB connection (6′ cable included with amp)
Android and iOS tablets: TüN Mobile — requires Bluetooth connection and the VXi-BTCBluetooth communicator (sold separately)
Android phones and Apple iPhones: TüN Express (for Basic setups only) — requires Bluetooth connection and the VXi-BTC Bluetooth communicator (sold separately)

Other accessories you may want with this amp

This VXi amplifier features JLid™ inter-device connection ports for JL Audio’s proprietary network system for controlling data. The DRC-205 digital remote control lets you adjust the master volume, subwoofer level, switch between up to six preset tunings, and indicates the amp’s status via LED. An optional VXi-HUB network hub comes in handy when you have three or more VXi amps in your system, coordinating all the adjustments and controls. A FiX 82 or a FiX 86 can be used to remove factory sound processing, for higher-fidelity factory system integration for your VXi amplifier.

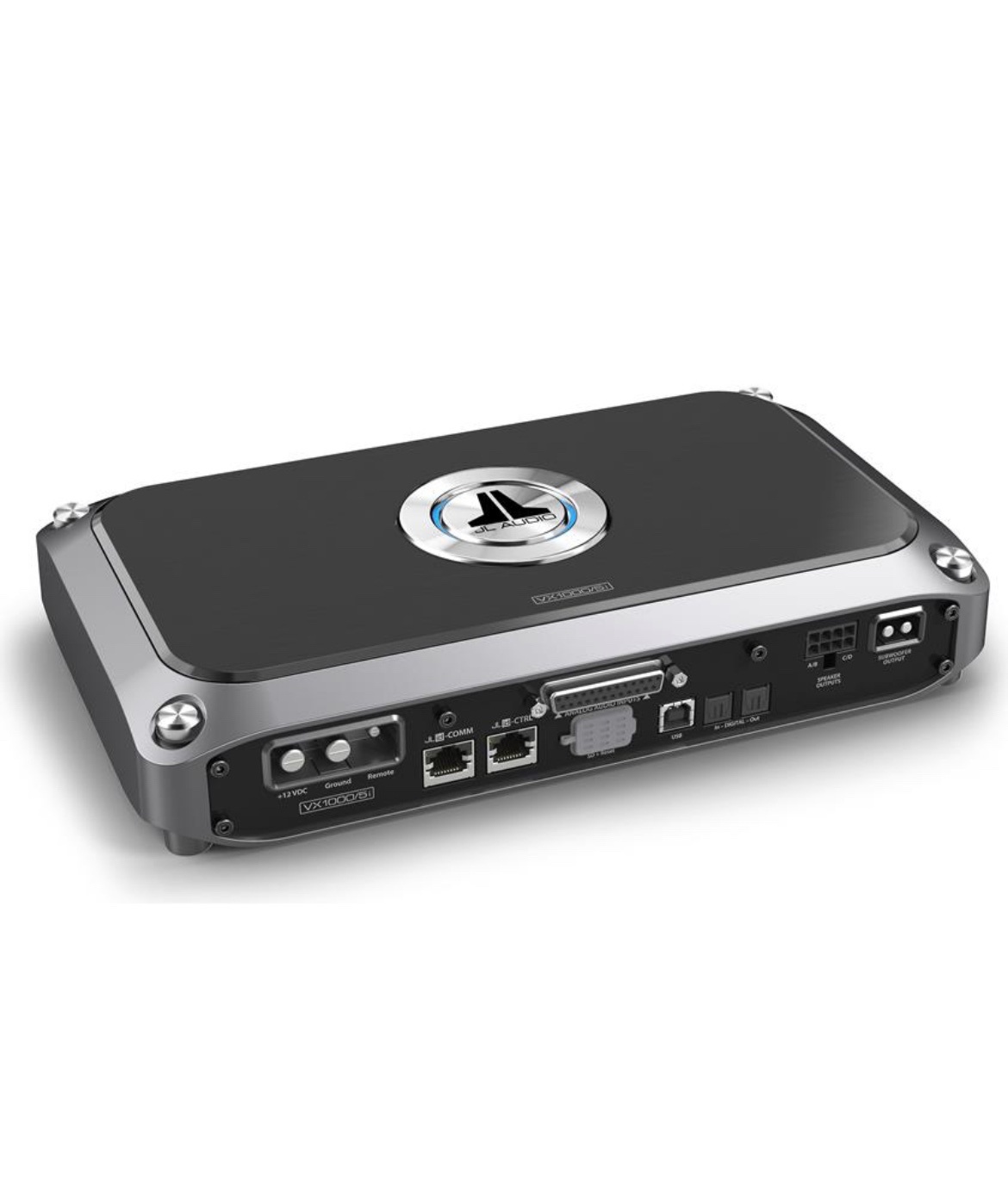

VX1000/5i connection panel

Product highlights:

5-channel car amplifier
75 watts RMS x 4 + 400 watts RMS x 1 (at 4 ohms)
100 watts RMS x 4 + 600 watts RMS x 1 (at 2 ohms)
200 watts RMS x 2 bridged at 4 ohms + 600 watts RMS x 1 at 2 ohms
Class D amplifier design with NexD2™ switching amp technology

Digital Signal Processing:

24-bit 96 kHz digital processing
DSP adjustments and settings made with JL Audio’s TüN app (PC and Mac) via USB, via Bluetooth (tablets and phones) with BTC Bluetooth option
input routing and mixing
adjustable gain controls with clip indication
fully adjustable high-pass, low-pass, and bandpass filters
- selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
10-band EQ
phase and polarity control
time alignment in 0.01 ms (1/8″) increments

Connection Features

differential-balanced inputs eliminate noise coming from your vehicle’s electrical system
preamp and speaker-level inputs (speaker wire to RCA adapterrequired for speaker-level input)
- high-level inputs — up to 16 volts RMS (about 60 watts)
- DC offset or signal sensing auto turn-on eliminates need for remote lead
2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out)
2-channel analog preamp output (4V RMS)
JLid™ connections for optional Network Hub, Bluetooth Communicator, and Digital Remote Control
USB connection for device running TüN app (6-foot cable included)
wiring, fuse, and hardware not included with amplifier
- 4-gauge power and ground leads and an 80-amp fuse recommended
11-5/16″W x 2-1/8″H x 6-11/16″D
warranty: 2 years
MFR # 010-03110-00
Item # 13698632
